Crossover Stairs

Industrial Crossover stairs, bridges, rooftop and work platforms that are OSHA compliant and provide custom-built safe access for daily operations, and routine maintenance

OSHA Industrial Crossover Stairs & Roof Crossover Platforms

Standard industrial and alternating tread crossover stairs, pre-engineered, custom designs that move people safely.

Safety First. Always Compliant.

01
Space Saving Designs

Alternating tread crossover stairs require a smaller overall footprint than standard stairs because of their steeper slope of either 56 or 68 degrees

02
Material Handling Expertise

Lapeyre Stair has crafted custom access and integrated systems since 1981.

03
Fast Lead Times

Our lead times outpace industry standards and are guarenteed.

04
Customized to Your Needs

Our designs are built to precise dimensions, down to the 1/8th of an inch.

05
Integrator Support

Our designers and engineers work hand in hand with integrators across the counrty.

06
Heavy Duty Materials

Our crossover stair systems are available in heavy-gauge, powder coated and galvanized carbon steel, stainless steel, and aluminum.

Alternating Tread Crossover Stair

Standard? Space-saving? Choosing the Right Crossover Stair System.

Are you battling unimaginable layouts and obstacles? Put our team of engineers and designers to work solving your crossover headaches. We’ll work with you to design compliant solutions to your exact needs, down to a fraction of an inch.

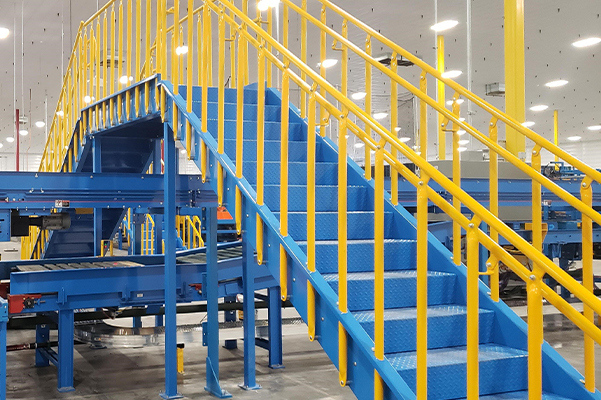

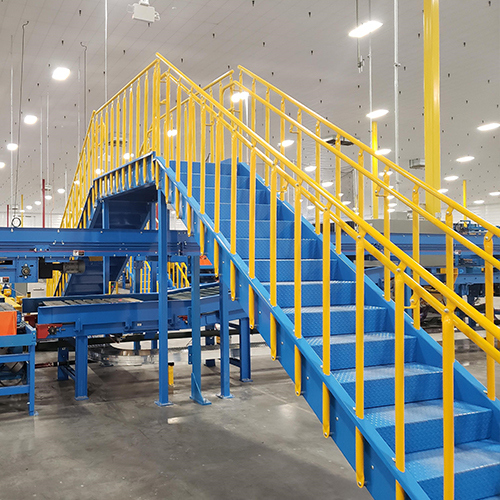

Industrial Crossover Stairs

More space? Choose a crossover with industrial access stairs.

Choose crossovers with bolted access stairs for applications without space restrictions. They have standard stairs that require more space to install than alternating tread stairs but they are also the most comfortable to use.

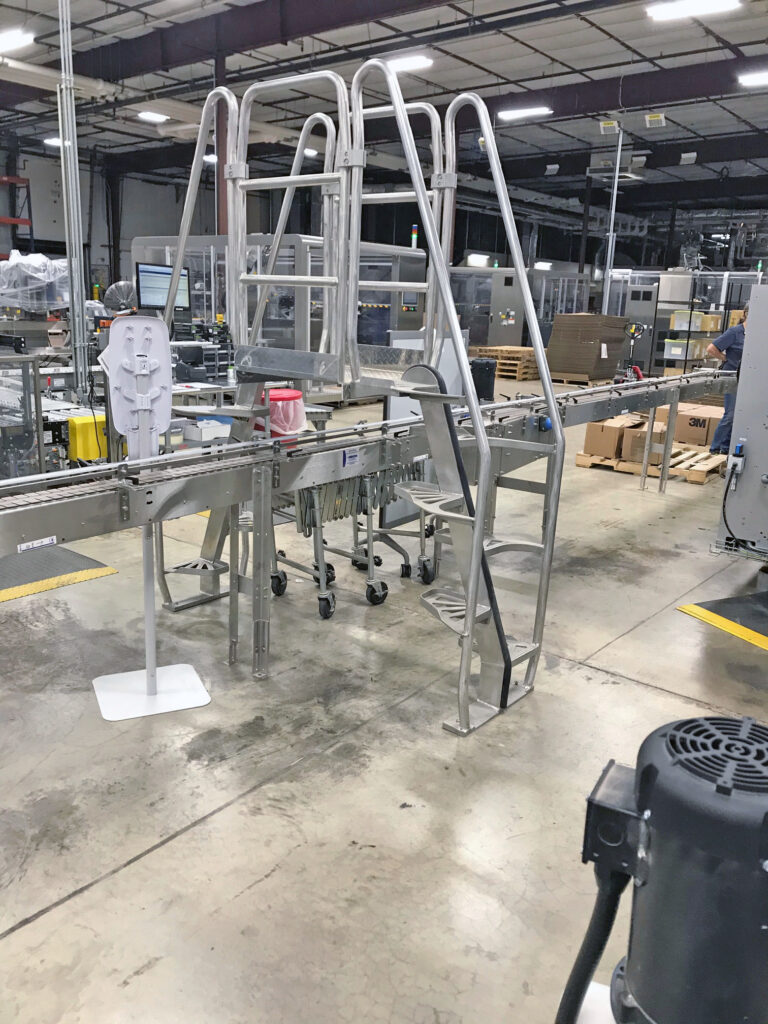

Alternating Tread Crossover Stairs

Less space? Choose a crossover with alternating tread stairs.

For applications where space is limited, choose crossovers with alternating tread stairs. 68° alternating tread stairs require the least amount of space but the steeper angle is less comfortable to use. The less steep angle of 56° alternating tread stairs is more comfortable to use while also requiring less space.

Crossover Stair Applications

Crossover Stairs In Use

Crossover Stair Technical Specifications

View crossover stair specifications, data sheets, design, technical, installation files

Measuring guidelines, sample prints, standard dimensions, connection details, and more.

Space Savings vs. Standard Industrial Stair

THE OBSTACLE YOU
NEED TO CLEAR
(H X L)
REQUIRED OVERALL LENGTH OF SYSTEMS
68° ALTERNATING
TREAD STAIR
56° ALTERNATING
TREAD STAIR
STANDARD INDUSTRIAL STAIR
42" X 24"70"90"106"
42” X 48”94"114"130"
48” X 24”75"98"126"
48” X 48”99"122"150"
54” X 24”80"106"128"
54” X 48”110"136"158"
60” X 24”84"113"144"
60” X 48”108"137"168"
66” X 24”89"122"146"
66” X 48”113"146"170"
72” X 24”94"130"164"
72” X 48”118"154"188"
78” X 24”99"138"194"
84” X 36”128"170"206"

Addition Products for Industrial Crossover Stairs

Crossover Stair Cross Bracing Kit

Taller crossover bridges with alternating tread stairs may require bracing to prevent swaying. The bracing kit for these systems includes stainless steel brackets and hardware for the upper and lower connections plus custom tubing in the same material and finish as your crossover system.

We need the following information to calculate bracing specifications. Contact us for assistance with determining the optimal spread and brace angles for your system.

✔ Dimensions of obstacles surrounding the system
✔ Optimal spread angle (0° to 20° for 56° stairs; 0° to 10° for 68° stairs)
✔ Optimal brace angle (20° to 30° from the vertical plane)

The cost of the bracing kit is included in the list price for crossovers with alternating tread stairs. Subtract $328.22 from the list price if you will provide your own bracing for the system.

Alternating Tread Crossover Stair

Additional Crossover Stair Options

Crossover Integrators

We’ll work with you to design compliant solutions to your exact needs, down to a fraction of an inch. Lapeyre Stair’s integrated systems include conveyor crossovers, elevated conveyors, work platforms, and equipment access solutions.

Crossover Stair Resources

Crossover Stair Design

Applications, Materials, Finished, Colors

Power Coated Carbon Steel Crossover Stairs

Ideal for most indoor applications.

Applications, Industries, Specifications & Options

Custom built to exact height
Ideal for material handling applications, distribution and packaging centers
Space saving systems built with alternating tread and industrial stair.

Hot Dipped Galvanized Carbon Steel Crossover Stairs

Ideal for most outdoor applications.

Applications, Industries, Specifications & Options

Custom built to exact height
Three-stringer design with alternating treads welded to the stringers
Ships with rubber bumper attached to the center stringer

Stainless Steel Crossover Stairs

Ideal for most sanitary applications.

Applications, Industries, Specifications & Options

Custom built to exact height
Three-stringer design with alternating treads welded to the stringers
Ships with rubber bumper attached to the center stringer

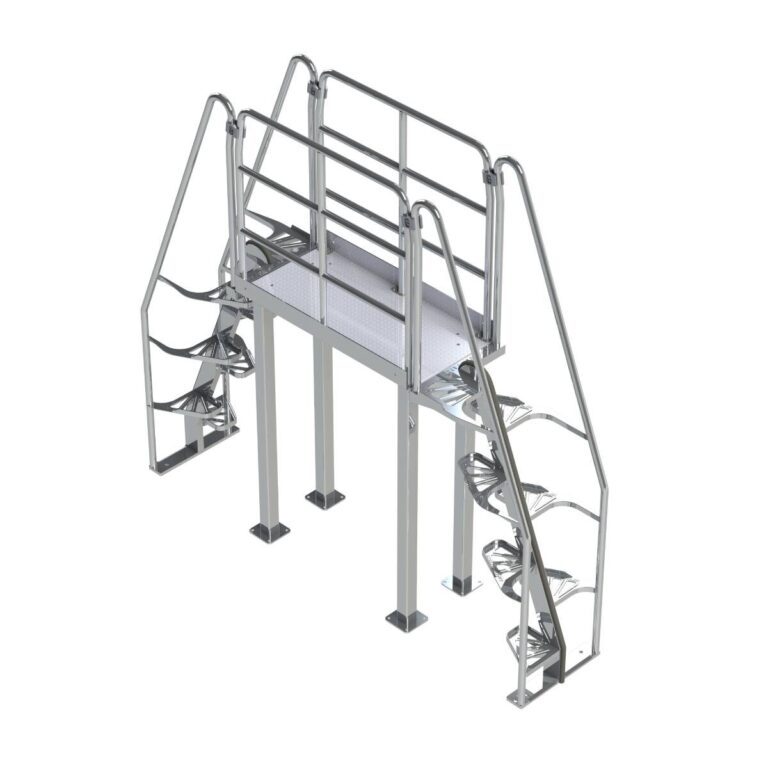

Aluminum Crossover Stairs

Ideal for light weight applications.

Applications, Industries, Specifications & Options

Custom built to exact height
Three-stringer design with alternating treads welded to the stringers
Ships with rubber bumper attached to the center stringer

An Approved U.S. Government Vendor

For 40 years, Lapeyre Stair has built a reputation for understanding the unique challenges our customers face and having a keen appreciation for the ever-evolving nature of workplace safety and compliance. We’re committed to helping facilities across the country provide safety and efficient operations. It’s what drives us to continually develop innovative products that deliver exceptional value.
